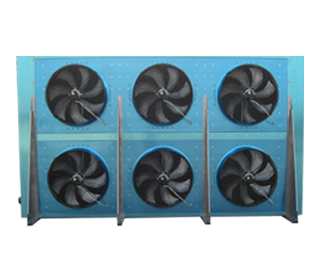

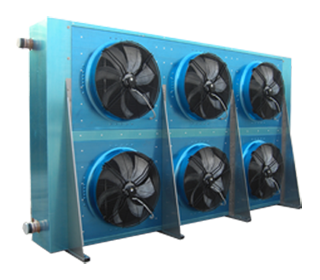

H2

Main features

• Vertical construction
• Double fan row
• Single coil
• Horizontal air flow
• Standard heat exchanger execution with aluminium fins and copper tubes in single or double circuit execution
• AC and brushless EC fans with 630, 710, 800, 910, 1000 mm diameter, for 50 Hz or 60 Hz of grid frequency
• High efficiency fans with high, medium, low speed, reduced speed and variable speed versions with the related sound levels: medium, confort, low, ultra-low and balanced
• Fan section with intermediate panels guaranteing a homogenoeus air flow preventing turbulences between fans
• Fan cover plates made of one piece
• Frame made of welded square section stainless steel pipes (*depending on the serie)
• Construction and cover panels made of aluminium
